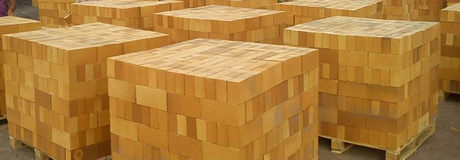

We are one of the reliable High Alumina Bricks Manufacturers in India. We offer an exclusive range of High Alumina Bricks which are of optimum quality. Our range encompasses of High Alumina Fire Bricks, High Alumina Low Ferric Fire Bricks etc which are highly exclusive. We offer different shapes and sizes in our High Alumina Bricks which cannot be availed through anywhere else. We use the best quality material to manufacture our High Alumina Bricks so that there is no compromise in their quality. We offer our High Alumina Bricks at quite reasonable prices and also deliver them well within the stipulated time avoiding all delays.


High Alumina Bricks

QUALITY CHEMICAL ANALYSIS PHYSICAL PROPERTIES THERMAL PROPERTIES
Parameters Al2O3 Min (%) Fe2O3 Max (%) A.P. Max (%) B.D. Avg (g/cc) C.C.S. Min (kg/cm2) P.C.E. Min Ort/°C RUL Min (ta°C) PLC Max (%)/°C
VC 30 - 25 30 2.5 25 2.00 275 30/1600 1400 1.0/1380
VC 40 - 30 40 3.0 23 2.20 325 31/1683 1420 1.0/1400
VC 50 - 30 50 3.0 22 2.35 400 33/1743 1430 1.5/1450
VC 60 - 30 60 3.0 22 2.50 400 35/1785 1440 2.0/1500
VC 70 - 30 70 3.0 22 2.60 500 36/1804 1450 2.0/1500
VC 80 - 30 80 3.0 22 2.75 600 37/1820 1480 2.0/1500
Note :
  • Size Tolerance : + / - 1.5 % or + / - 2 Mm Which Ever is Greater
  • Above Specified Values Relate to Machine Pressed Standard Bricks.
  • P L C Values are for Specimens Heated At Given Temp. for 2 Hours

High Alumina- Low Bricks

QUALITY CHEMICAL ANALYSIS PHYSICAL PROPERTIES THERMAL PROPERTIES
Parameters Al2O3 Min (%) Fe2O3 Max (%) A.P. Max (%) B.D. Avg (g/cc) C.C.S. Min (kg/cm2) P.C.E. Min Ort/oC RUL Min (ta°C) PLC Max (%)/°C
VC LF 40 - 20 40 2.0 22 2.20 350 32/33
1717/1743		 1420 1.0/1400
VC LF 45 - 15 45 1.5 19 2.25 400 33/34
1743/1763		 1420 1.0/1450
VC LF 50 - 20 50 2.0 21 2.35 425 34/1763 1440 1.0/1500
VC LF 60 - 20 60 2.0 21 2.50 450 36/37
1804/1820		 1450 1.5/1450
VC LF 70 - 25 70 2.5 23 2.60 500 37/1820 1480 2.0/1500
Note :
  • Size Tolerance : + / - 1.5 % or + / - 2 Mm Which Ever is Greater
  • Above Specified Values Relate to Machine Pressed Standard Bricks.
  • P L C Values are for Specimens Heated At Given Temp. for 2 Hours
